Introduction and project overview

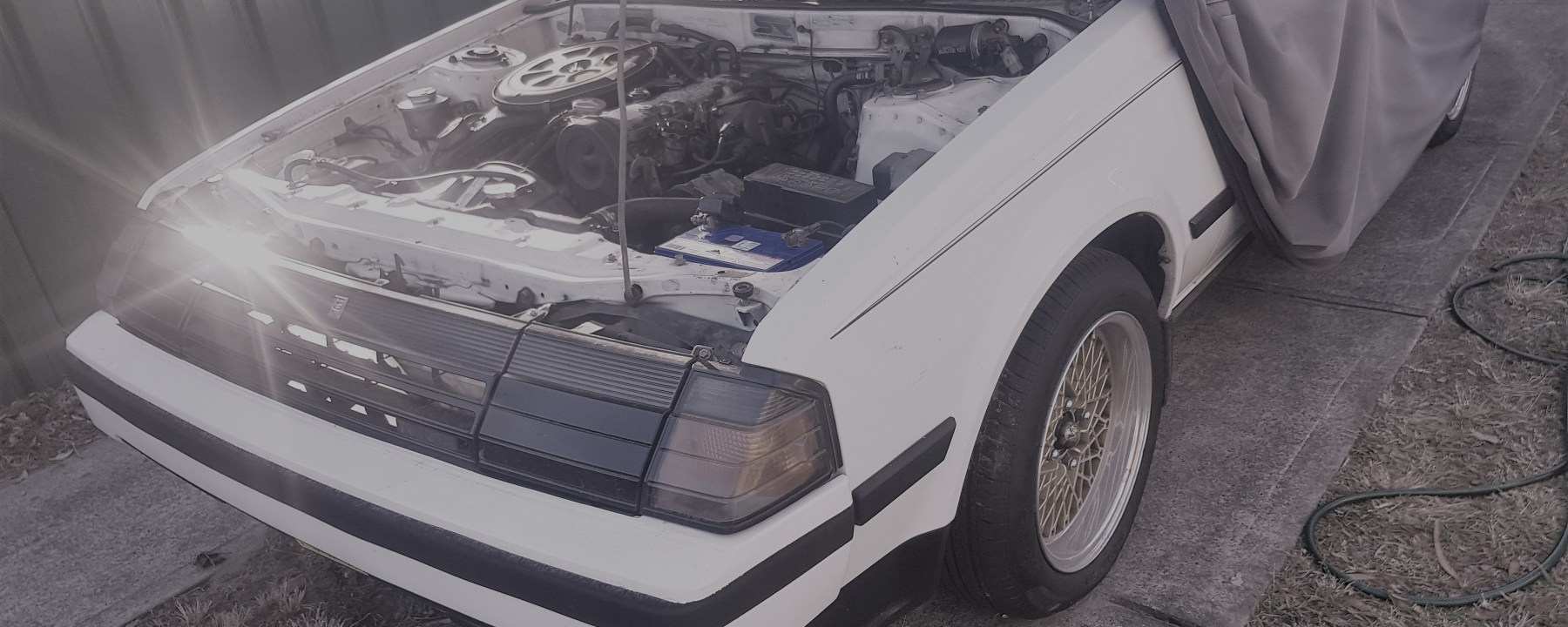

This website is for my 1984 Toyota Celica. In 2018 I started fitting a 5th gen 3SGE BEAMS from a toyota Altezza to the car, but could not find a lot of information online about fitting this engine to an A60 Celica/Supra. this site is to document everything involved for this conversion.

Getting Started

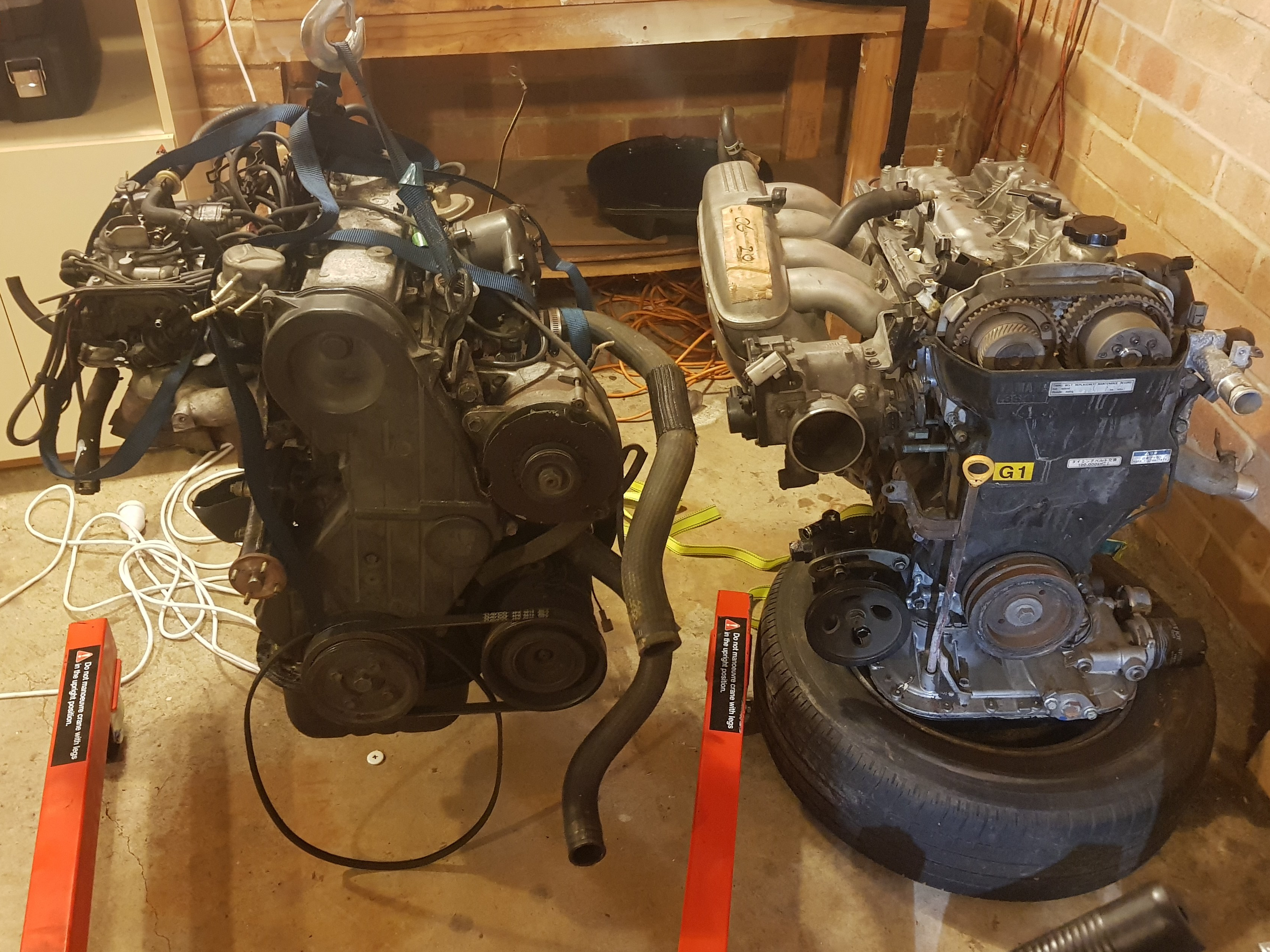

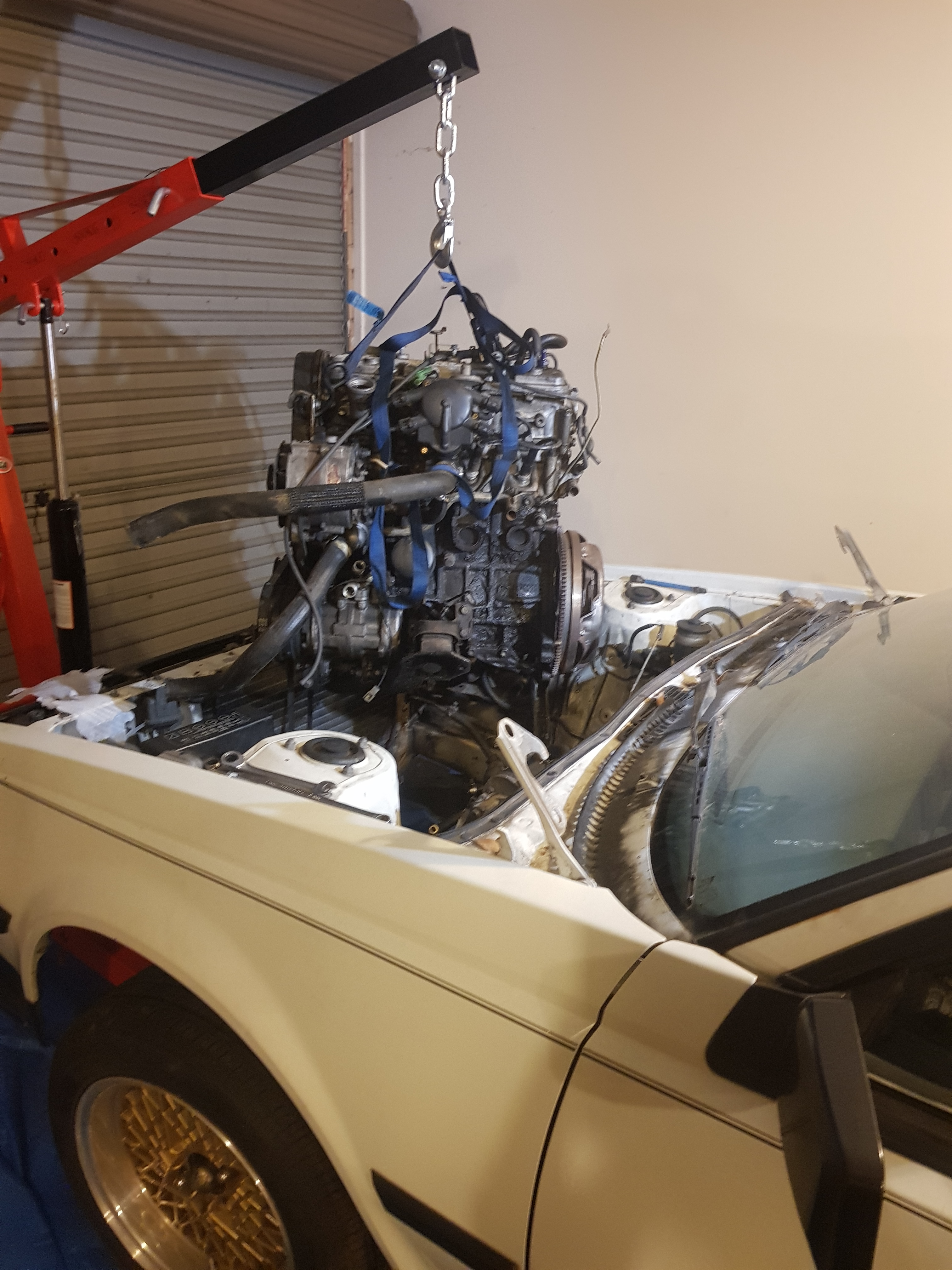

The first task was to remove the old engine. With the old engine out we can compare the 2S and 3SGE BEAMS: Both are Toyota S series engines, albeit 20 years apart (1985 and 2005 was the end of each production run). They are both 2 litre (1995cc and 1998cc) and the external dimensions of the block are the same. This means that the 2S engine mounts and crossmember can be used for the new engine without any modifications. The 2S is carbureted so the fuel system and wiring on the car will need to be converted to EFI. I converted the celica to manual in 2016 and am hoping to reuse the same W58 transmission. From what I can see the 5 speed gearbox can be used without having to change the gearbox crossmember or prop shaft. The mounting points on the engine for ancillary brackets are also the same but the alternator and power steering pump sit on opposite sides on the 3sge

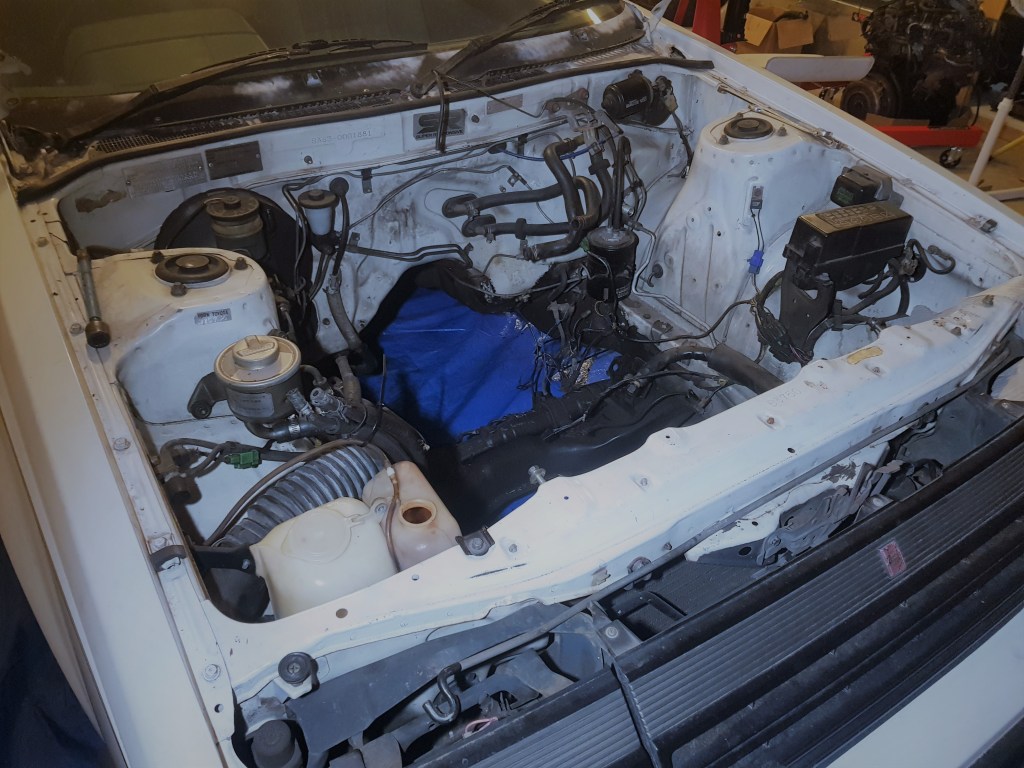

This is the space I have to work with. there should be plenty of room apart from around the brake/clutch master due to the size of the 3sge manifold. The battery, washer bottles and heater piping will not change, but the power steering lines and reservoir will be moved to the passenger side of the engine bay. The 2s mounts fit and are lower profile compared to the altezza mounts so they wont cause any clearance issues.

•

•

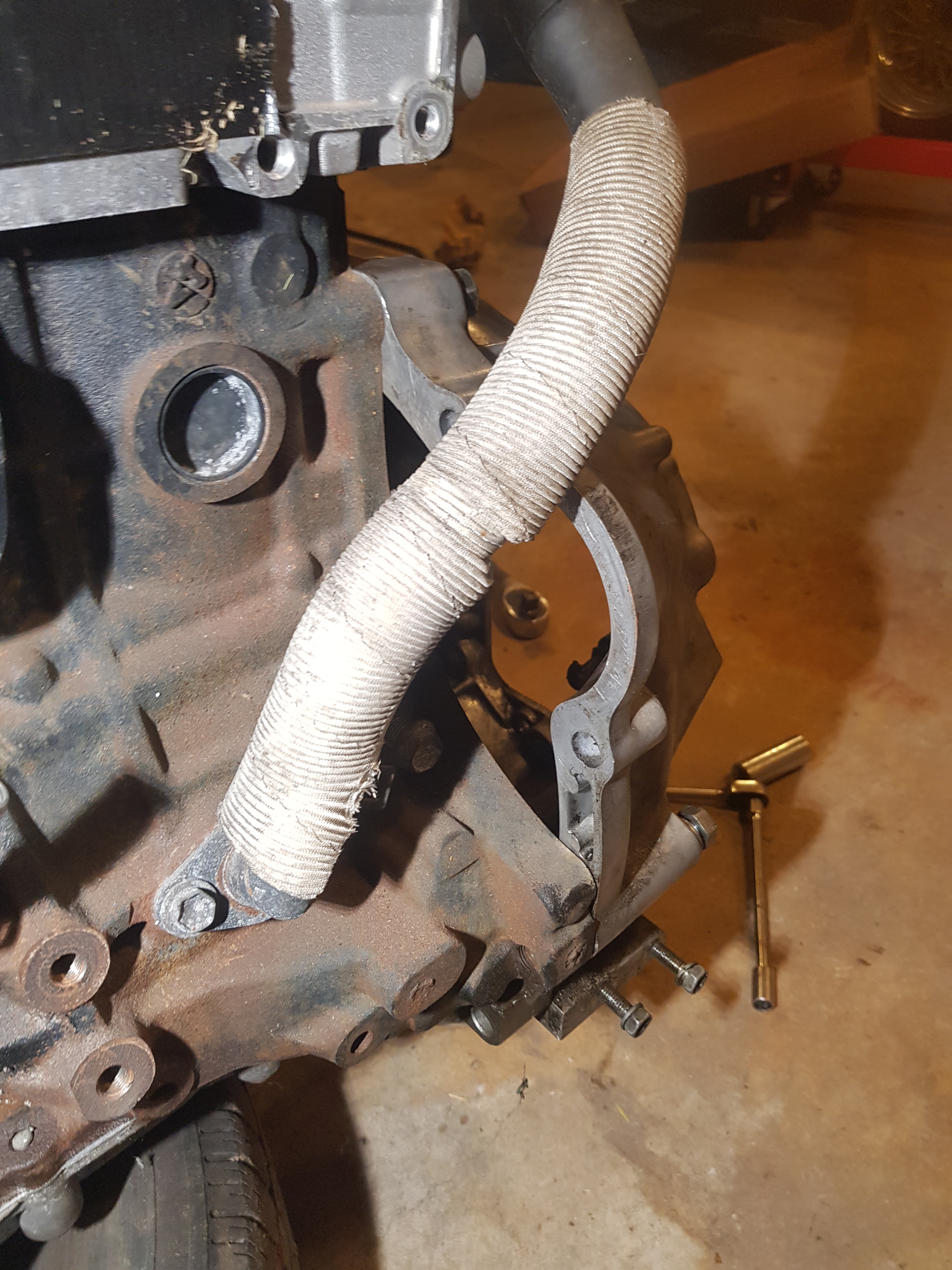

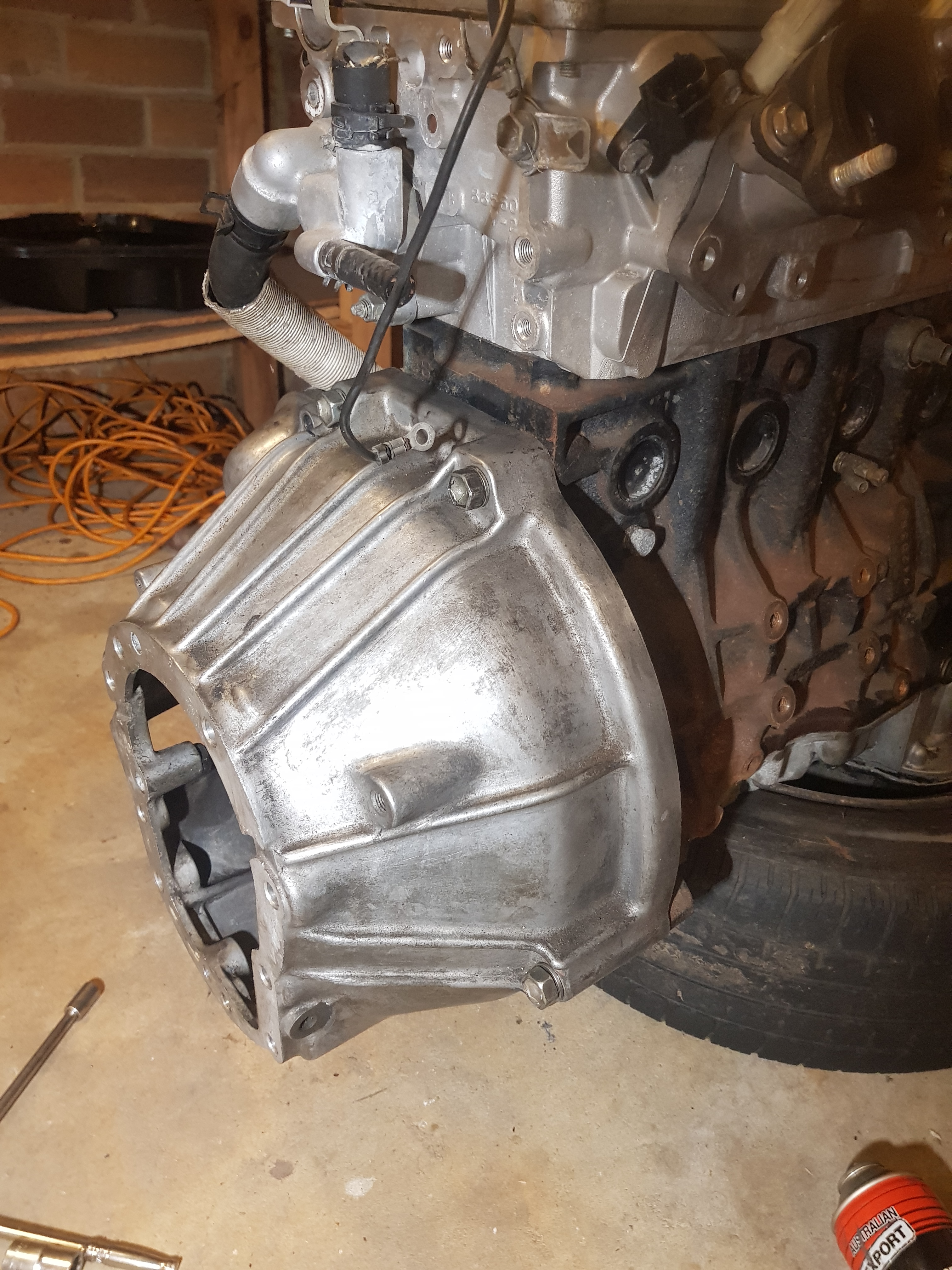

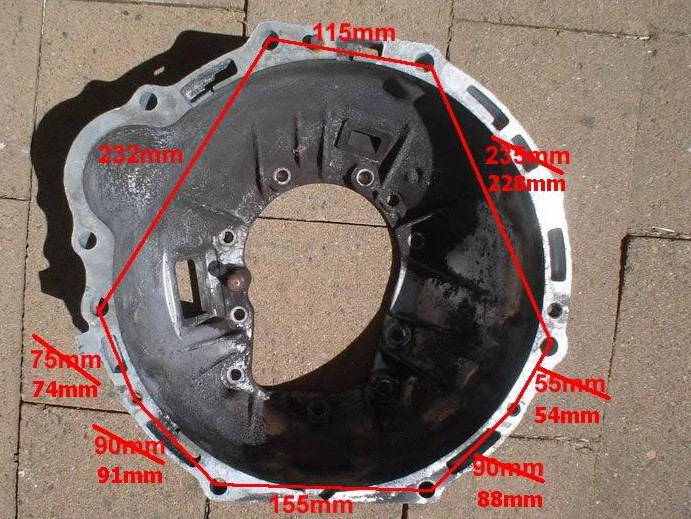

The 2s bellhousing and sandwich plate are a match. There is one problem: This bellhousing places the starter motor on the wrong side. this is due to the 2s being an older reverse-flow design with the inlet and exhaust ports on the same side. This is not a problem in older gen 1-4 3SGES as they were transverse mounted and canted. For 5th gen motors the starter needs to be on the drivers side so there is enough room for the oil drain, headers, water lines etc.
