J160 6 Speed

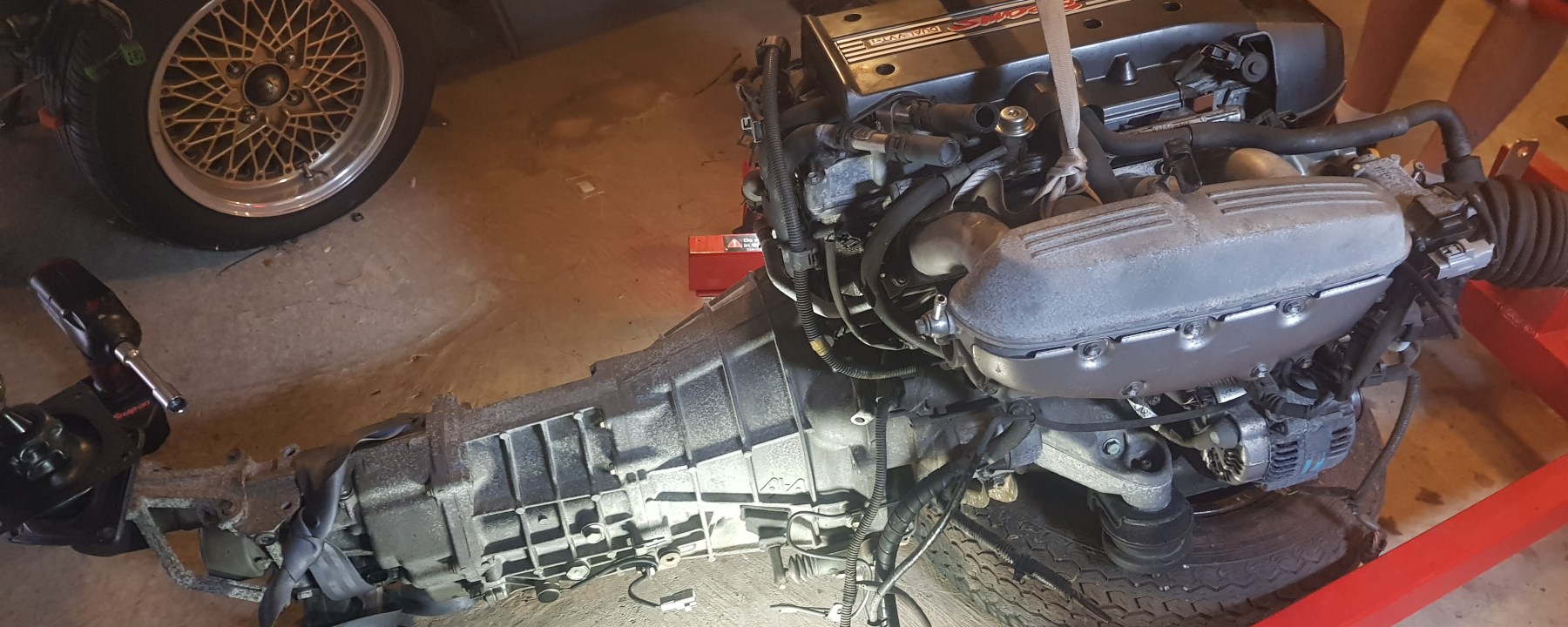

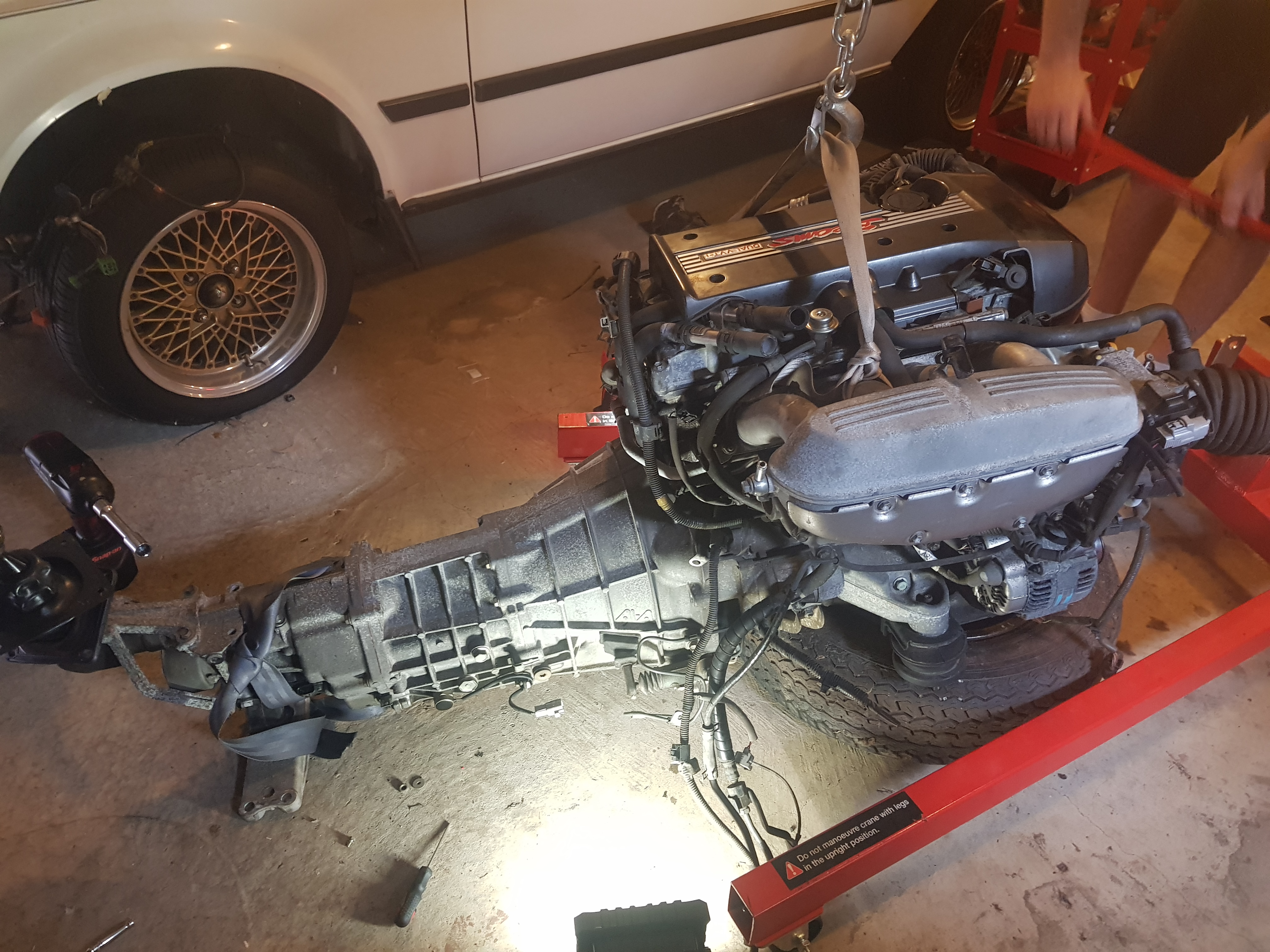

After spending several months looking for either a Y series bellhousing or a J160 for sale in australia and finding neither, I decided to buy a complete SXE10 Altezza half cut. This ended up easier than trying to buy a gearbox, starter, ps pump and other required parts seperately,
It also included the prop shaft which I may need later. It also came with the 3sge engine loom, modifying the 3sge loom is a lot easier than making one from scratch.

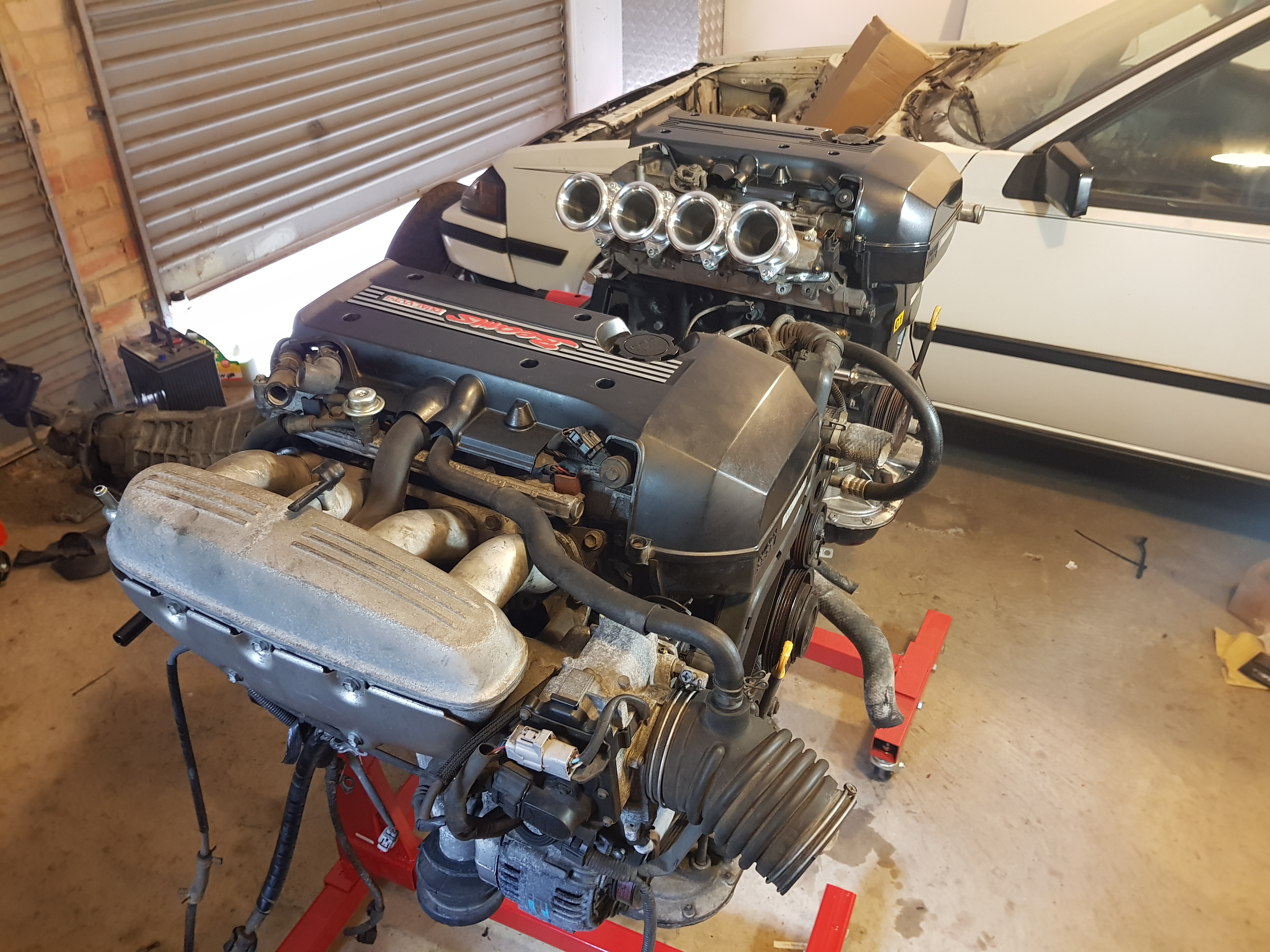

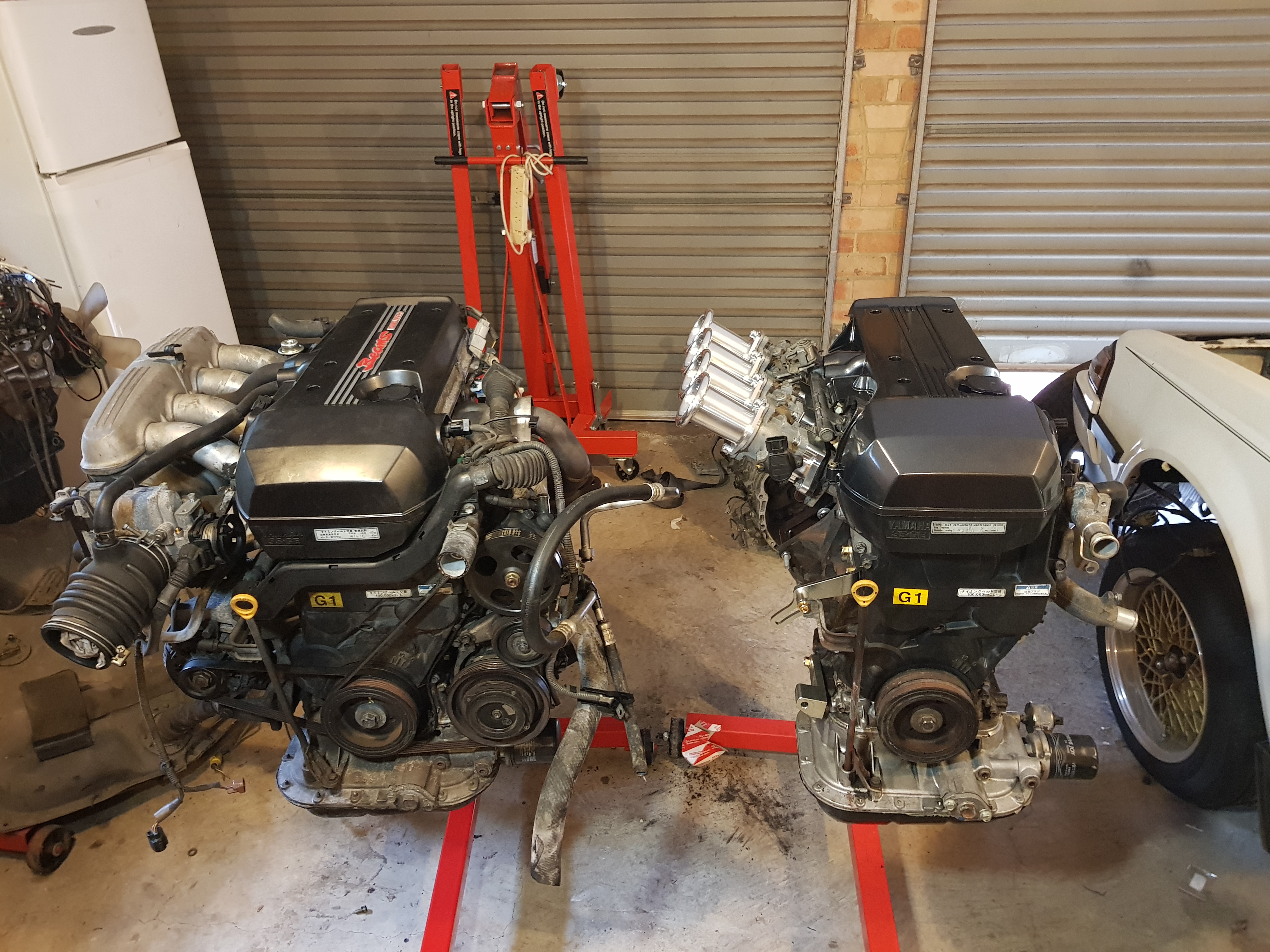

When comparing the two side by side the ITB’s are a lot more compact which gives some much needed space in the left hand side of the engine bay. However the ends of the velocity stacks are sitting higher which might cause clearance issues with the bonnet.
When placed side by side we can see the difference between the W58 (right) and the J160. the bellhousing on the J160 is more tapered, which may cause clearance issues with the trans tunnel. The total length is the same, and the crossmember mounts are similar so mounting it to the chassis shouldnt require a lot of customisation.
I received the J160 shifter relocation kit from SQ Engineering. The location kit is required as the wheelbase of the celica is shorter than the Altezza, so when using the original housing, the shifter will sit too far back.
Fitted the shifter relocation kit. This will bring the shifter forward considerably and closer online with the w58 shifter. As mentioned in the previous post, it will sit about 40mm further forward. Compared to the W58, the throw is shorter but it is angled further forward.
One thing that I did learn putting the j160 in the RA60 chassis, the hole for the shifter is not in the same place compared to IRS (right) chassis. it is now perfectly in the centre of the shifter hole.
Michael's 3SGE Celica Build
